Product Description
1.parameter of video endoscope--- EVC-5 Video Bronchoscope
| |
Item
|
Bronchoscope
|
|
Diameter of distal- end
|
Φ4.8mm
|
|
Diameter of insert tube
|
Φ 5.0mm
|
|
Clamp aperture
|
Φ2.2mm
|
|
Working length
|
530/600mm
|
|
Total length
|
860 mm
|
|
View of field
|
120 º
|
|
Depth of view
|
2-50mm
|
|
Tip deflection
|
up 180° down 130°
|
|
Remark
|
We can provide OEM service; technical details can be customized.
|
2.Characters of Bronchoscope
| Bending operation |
Traction chain structure, whole sealed waterproof
|
| Image display |
Two images display optional |
| Split machine |
Main part and light source are splited |
| Quality certification |
ISO |
| Warranty |
One year(free), permanent repairs (not free) |
| Package size |
64*18*48cm (G.W.:5.18kgs) |

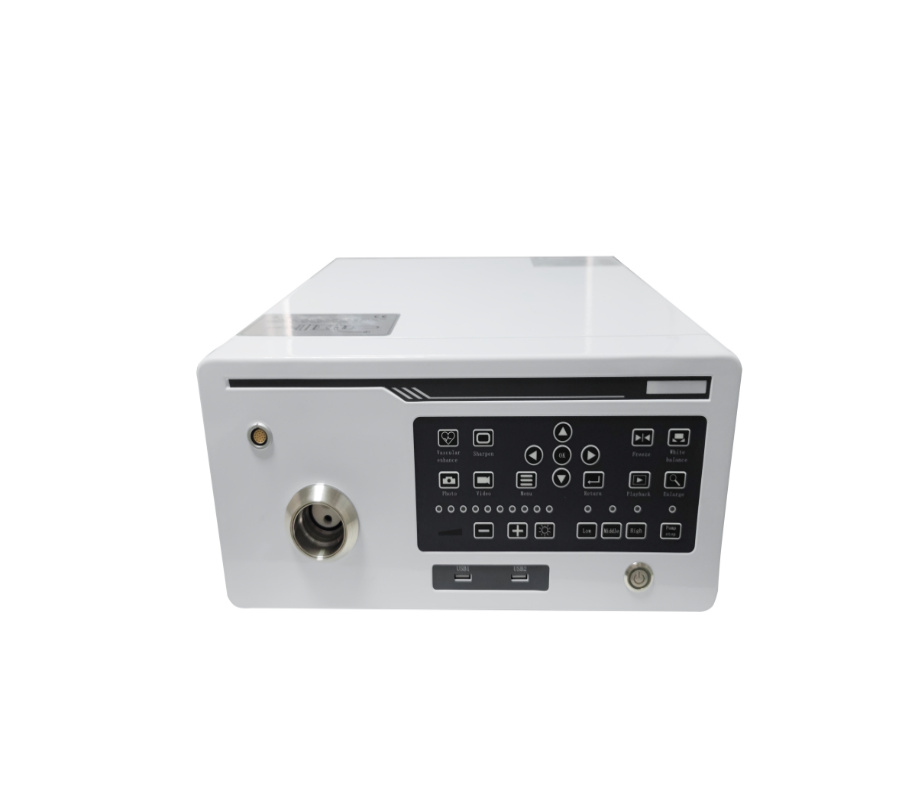

3.Video processor and light cold source machine
| |
Lamp : LED light (80W white)
|
|
Power: 220-240V; 50-60HZ
|
|
Color temperature : ≥5300K ,140000lx illumination
|
|
Brightness:0-10 level adjustable
|
|
Video signal output: HDMI x2,DVI
|
|
Air pump pressure : 30-60Mpk,
|
|
Air pump power :Strong/medium/weak 3 level adjustable
|
|
Air flow : 4-10 L/min
|
|
Sharpness adjustment : Supports automatic and manual modes, the manual mode supports 0-10 level adjustment
|
|
*Withe balance : It supports 4 kinds of fixed white balance parameter selection, real-time dynamic white balance mode and manual white balance parameter setting mode, or one click white balance
|
|
*Gain function : It supports automatic and manual modes, and the manual mode supports 0-16 level gain adjustment and 0-30 level exposure time adjustment
|
|
*Vascular enhancement:Can increase vascular clarity
|
|
*Electronic amplification :Support 1.2/1.5/1.7/2.0 times 4-gear electronic amplification function
|
|
*Bad point correction: Support 0-6 level image bad point correction
|
|
Package size :60*30*50cm (G.W.:13kgs)
|
|
Main Function:
I*mage adjustment: supports 0-100 level brightness, contrast and saturation adjustment
*Support full screen image freezing and half screen mode to freeze large images and dynamically display small images
*With USB interface support picture and video record function and pictures playback function
*Support connect same series Video Gastroscope, Colonoscope, bronchoscope, laryngoscope , Cystoscope , Ureteroscope share this tower use
|
4.LCD Monitor
| |
- Display size: 24"
- Resolution：1920 X 1080
- Display Ratio：16:9
- Color：16.7M
- Camoration Brightness：180±10 cd/㎡
- Max.Brightness ：250 cd/ ㎡
- Interface :VGA/HDMI
- Package size : 65*18*50cm (G.W.:6 kgs)
|

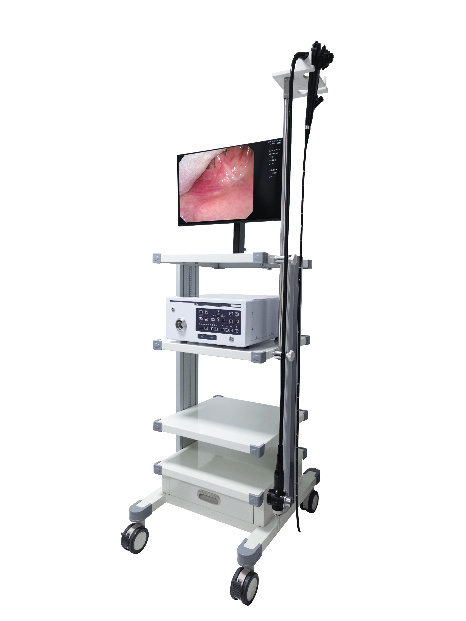

5.Equipment vehicles
|
Size
|
500 * 700 *1350mm
|
|
Package size
|
127*64*22cm (G.W.:36.0kgs)
|
TEAM & Factory
Office Building
Service Office
Product Training
Stock 1
Workshop
Test Room
Exhibition
Exhibition
Package
Ready To Ship
Our Advantages
The most important application of this product is in the field of endoscopy, especially bronchoscopy. As a flexible endoscope, bronchoscope needs to be equipped with high-performance light source and focusing device to ensure the inspection effect and accuracy. This color light source focusing device, as a supporting accessory of bronchoscope, is undoubtedly your best choice.
In addition to the field of medical examination, this product is also applicable to many other fields, such as laboratory research, industrial examination and other fields. No matter which field you use, you can get the highest quality image effect.
This product needs certain technical operation and maintenance to ensure its best use effect. If you need more details, you can refer to the product manual provided by us or contact our customer service. Whether you are a medical professional, laboratory researcher or industrial inspector, this color light source focusing device is your best choice.
