Portable USB Gastroscope endoscope -Flexible Endoscope

Product Description

1.parameter of endoscope--- EMV -800 Portable USB Gastroscope

	Diameter of distal- end	Φ9.8mm
	Diameter of insert tube	Φ9.6mm
	Clamp aperture	Φ2.8mm
	Working length	1050mm
	Total length	1350mm
	View of field	140 º
	Depth of view	3-100mm
	Resolution	CMOS 1,000,000 pixels
	Tip deflection	Up180° down 90° L/R 100°
Remark	We can provide OEM service; technical details can be customized.

2.Characters of gastroscope

Bending operation	Traction chain structure, whole sealed waterproof
Image display	Two images display optional
Split machine	Main part and light source are splited
Quality certification	ISO
Warranty	One year(free), permanent repairs (not free)
Package size	64*18*48cm (G.W.:5.18kgs)

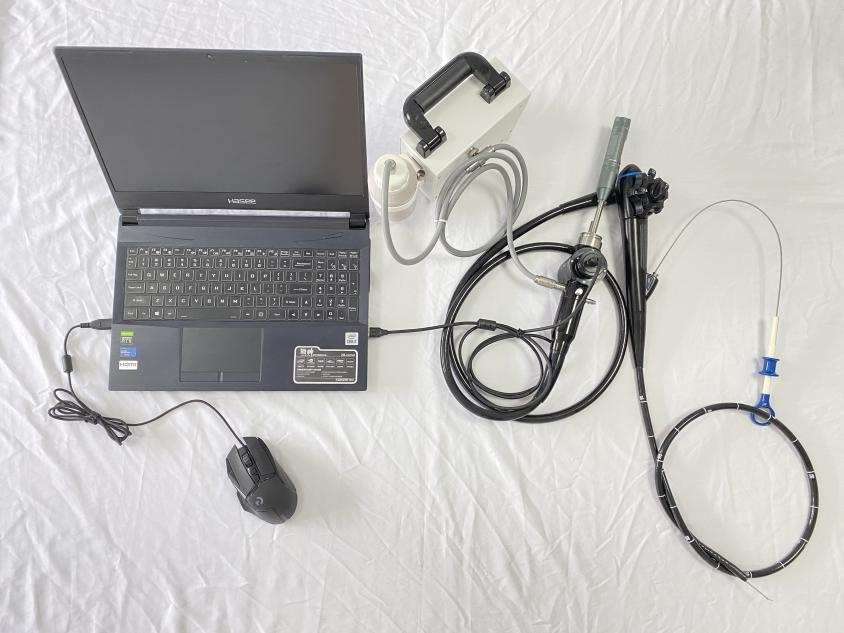

3.Flexible endoscope package list

	Portable USB Gastroscope	set	1
	Mouth Pad	Pc	3
	Leak detector	set	1
	Biopsy forceps	pc	2
	Cleaning brush	pc	2
	Attract valve anti jet cover	Set	2
	Endoscope case	set	1
	Water bottle	set	1
	USB line	set	1
	Portable lamp	Pc	1
	Portable pump	set	1
	Certificate	pc	1
	User manual	pc	1

4.Additional configuration, please choose according to your own needs

	Laptop computer	HUAWEI MateBook D 14 SE

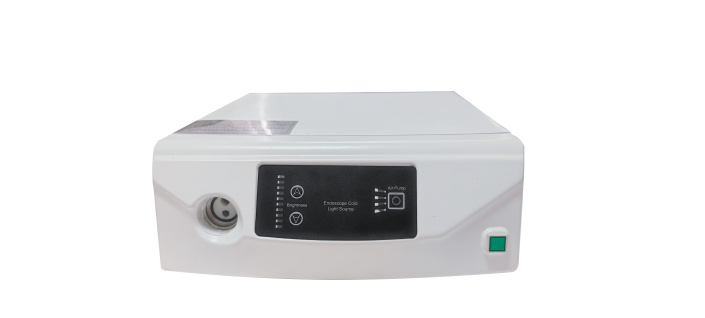

	Light cold source machine	1. Voltage: 220V-240V 2. Frequency: 50-60HZ 3.lamp Power: 15V-150W environmentally friendly halogen tungsten lamp 4. Illumination: 70000LX (using special measuring tools) 5. Color Temperature: 3000~7000K 6. Air Pump Pressure: 30-60kpa   Air Flow: 4/L/min-10L/min (Quiet pump)
	trolley

TEAM & Factory

Office Building

Service Office

Product Training

Stock 1

Workshop

Test Room

Exhibition

Exhibition

Package

Ready To Ship

FAQ

Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.

Q: Can you do OEM/ private label?
A: Of course ,we can do OEM/private label for you with free charge

Q: What's your delivery time?
A: Generally it is 7-10 working days for 1 set,or according to order quantity.

Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more. Please suggest your preferred payment method.
