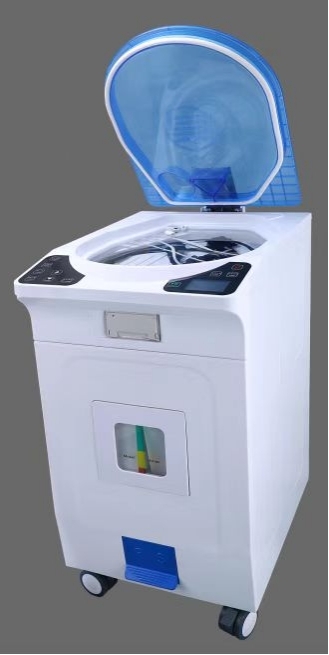

Professional Flexible automatic Endoscope Waher

disinfectant tank capacity

1 2 L

enzyme storage tanK capacity

1 .7 L

Alcohol storage tank capacity

1 .7 L

disinfectant dosage

1 0 L

enzyme dosage

Set the dosage according to users’needs.

alcohol dosage

Set the dosage at user’s requirement during installing and inject automatically into pipes of endoscopes and blow dry.

Leakage Detection

Leak-monitoring throughout the whole process and gives an alarm when an air leakage occurs.

disinfection count

The microcomputer automatically counts every disinfection process and shows the counts on the screen.

disinfection time

Glutaraldehyde: temperature ≥43 ℃ , time ≥10mins; constant temperature ≥23℃, time ≥1 8 mins;

Ortho-phthalaldehyde: constant temperature ≥23 ℃ , time ≥1 0 mins; Peroxyacetic acid, acidic electrolyzed oxidizing water: room temperature, time ≥1 0 mins

Disinfection quality and

thermostatic control

When detecting insufficient disinfectant solution or machinery faults, the machine gives automatic alarms and indicates the fault content. When the temperature does not meet the requirement, the machine will forcibly suspend the initiation process.

Disinfectant solution addition and discharge

Self-absorption, self-discharge.

Electric control of chamber cover(optional)

Avoid secondary contamination by hands which open the chamber cover  and pick up an endoscope, as hands might already be contaminated by the unsterilized external surface of chamber cover.

Noise

≤70db (during the blow drying) .

Ambient temperature

5℃~40℃.

Disinfection efficacy

The log1 0 inactivation value of Bacillus atrophaeus Nakamura≥3.00

Self disinfection cycle

Avoid secondary contaminations.

Print function(optional)

Automatic printing of disinfection resultsa
