Product Description
1.parameter of video endoscope--- EVR-5 Video Laryngoscope
| |
Item :
|
EVR-5
|
|
Top diameter :
|
≤Φ5.0mm
|
|
Input tube :
|
≤Φ5.0mm
|
|
Biopsy channel :
|
≥Φ2.2mm
|
|
Working length :
|
≥410mm
|
|
Total length :
|
≥670mm
|
|
Field of view :
|
≥120º
|
|
Depth of field :
|
≥3-50mm
|
|
Image resolution :
|
≥300000pixels CMOS
|
|
Bending angles :
|
≥ up160º down≥130º
|
|
warranty :
|
One year
|
|
Package size :
|
64 X 18 X 48cm G.W.:5.18KGS
|
2.Characters of Bronchoscope
Part 1：EVR -5 video
Laryngoscope
Bending operation : Traction chain structure, whole sealed waterproof
Image display : Two image display optional
Integrated 2 in1 machine : Main part and light source are integrated 2 in 1
Quality certification : ISO 13485 & 9001
Warranty : One year(free), permanent repairs (not free)
Package size :64*18*48cm (G.W.:5.18kgs)

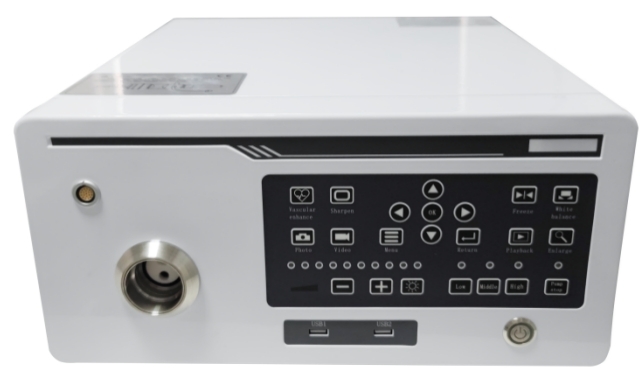

2.parameter of integrated 2 in 1: processer& light source machine（LED light）---EMV-9000
| |
Lamp :
|
LED light (80W white)
|
|
Power:
|
Wide voltage：110-240V; 50-60HZ
|
|
Color temperature :
|
≥5300K ,140000lx illumination
|
|
Brightness:
|
0-10 level adjustable
|
|
Video signal output:
|
HDMI ,DVI
|
|
Air pump pressure :
|
30-60Mpk,
|
|
Air pump power :
|
Strong/medium/weak 3 level adjustable
|
|
Air flow :
|
4-10 L/min
|
|
Sharpness adjustment :
|
Supports automatic and manual modes, the manual mode supports 0-10 level adjustment
|
|
*Withe balance :
|
It supports 4 kinds of fixed white balance parameter selection, real-time dynamic white balance mode and manual white balance parameter setting mode, or one click white balance
|
|
*Gain function :
|
It supports automatic and manual modes, and the manual mode supports 0-16 level gain adjustment and 0-30 level exposure time adjustment
|
|
*Vascular enhancement:
|
Can increase vascular clarity
|
|
*Electronic amplification:
|
Support 1.2/1.5/1.7/2.0 times 4-gear electronic amplification function
|
|
*Bad point correction:
|
Support 0-6 level image bad point correction
|
|
Package size :
|
55*30*50cm (G.W.:13kgs)
|
|
Main Function:
|
*mage adjustment: supports 0-100 level brightness, contrast and saturation adjustment
*Support full screen image freezing and half screen mode to freeze large images and dynamically display small images
*With USB interface support picture and video record function and pictures playback function
*Support connect same series Video Gastroscope, Colonoscope, bronchoscope , laryngoscope , Cystoscope , Ureteroscope share this tower use
|
|
|
Package size :
|
55 X 50 X 30cm 13KGS
|
| |
- Display size: 24"
- Resolution：1920 X 1080
- Display Ratio：16:9
- Color：16.7M
- Camoration Brightness：180±10 cd/㎡
- Max.Brightness ：250 cd/ ㎡
- Interface :VGA/HDMI
- Package size : 65*18*50cm (G.W.:6 kgs)
|
Part 4: Equipment vehicles
| |
Size
|
500 * 700 *1350mm
|
|
Package size
|
127*64*22cm (G.W.:36.0kgs)
|
TEAM & Factory
Office Building
Service Office
Product Training
Stock 1
Workshop
Test Room
Exhibition
Exhibition
Package
Ready To Ship
Our Advantages
Our endoscope is widely used in the field of animal clinical medicine and has been widely recognized. It has the obvious advantages of high definition, high brightness and high resolution, and can accurately observe the pathological tissue and condition, which provides an important basis for doctors' diagnosis and treatment.
Our endoscope has passed strict quality testing and certification, ensuring its stability and reliability of performance and quality. It can meet various clinical needs and is applicable to different types and sizes of animals, including domestic animals, domestic pets and wild animals.
We also provide a variety of endoscope accessories and accessories to meet different medical needs. Our products have passed the certification of international standards, gained good reputation and won the trust and support of customers.
Our team keeps innovating and improving to provide customers with better products and services. We firmly believe that our endoscope will provide better solutions for the field of animal medicine and make more contributions to animal health and welfare. If you need high-quality endoscope products and services, please choose us!
