Top 1 hotsale ECV-600 video Colonoscope -CMOS HD option

Product Description

1.parameter of video endoscope---ECV-600 video Colonoscope

Item

Video Colonoscope

Diameter of distal- end

Φ13.0mm

Diameter of insert tube

Φ12.8mm

Clamp aperture

Φ3.8mm

Working length

1350 mm

Total length

1650 mm

View of field

140 º

Depth of view

3-100mm

Resolution

CMOS1,000,000 Pixels high resolution

Tip deflection

up 180° down 180° L/R 160°

Diameter of distal- end

Φ13.0mm

Diameter of insert tube

Φ12.8mm

Resolution

CMOS1,000,000 Pixels high resolution

Tip deflection

up 180° down 180° L/R 160°

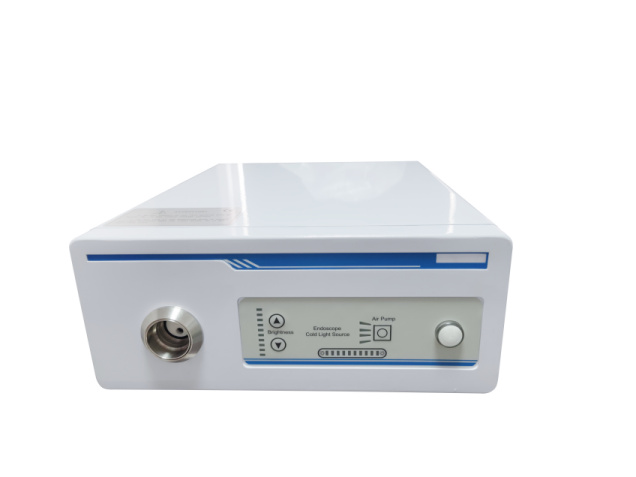

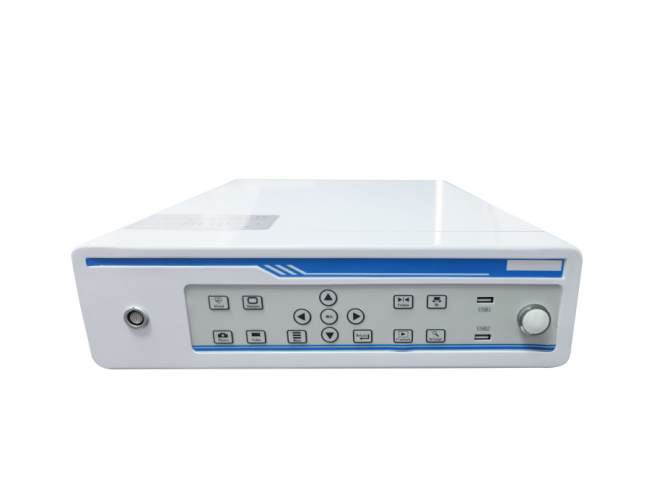

2.(Option 1:)parameter of processer& light source machine(LED light)-













Lamp :

LED light (80W white)

Power:

Wide voltage: 220-240V; 50-60HZ

Color temperature :

≥5300K ,140000lx illumination

Brightness:

0-10 level adjustable

Video signal output:

HDMI x2,DVI

Air pump pressure :

30-60Mpk,

Air pump power :

Strong/medium/weak 3 level adjustable

Air flow :

4-10 L/min

Sharpness adjustment :

Supports automatic and manual modes, the manual mode supports 0-10 level adjustment

*Withe balance :

It supports 4 kinds of fixed white balance parameter selection, real-time dynamic white balance mode and manual white balance parameter setting mode, or one click white balance

*Gain function :

It supports automatic and manual modes, and the manual mode supports 0-16 level gain adjustment and 0-30 level exposure time adjustment

*Vascular enhancement:

Can increase vascular clarity

*Electronic amplification:

Support 1.2/1.5/1.7/2.0 times 4-gear electronic amplification function

*Bad point correction:

Support 0-6 level image bad point correction

Package size :

55*46*50cm (G.W.:20kgs)

Main Function:



*mage adjustment: supports 0-100 level brightness, contrast and saturation I*mage adjustment: supports 0-100 level brightness, contrast and saturation adjustment

*Support full screen image freezing and half screen mode to freeze large images and dynamically display small images

*With USB interface support picture and video record function and pictures playback function

*Support connect same series Video bronchoscope ,laryngoscope ,Cystoscope ,Ureteroscope share this tower use

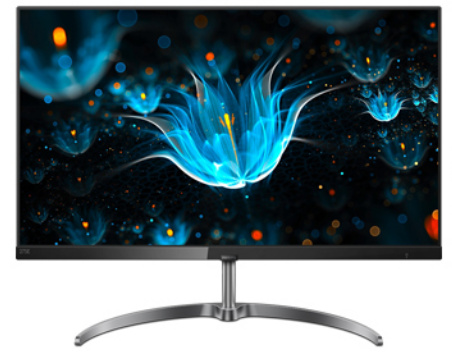

3.(Option 2:) LCD monitor ---24”



Display size

24”

Power Supply

External Power Supply 12V

Resolution

1280x1024

Display Ratio

16:9

Color

16.7M

Camoration Brightness

180±10 cd/㎡

Max.Brightness

400 cd/㎡

Package size

65*50*18cm (G.W.:6.0kgs)

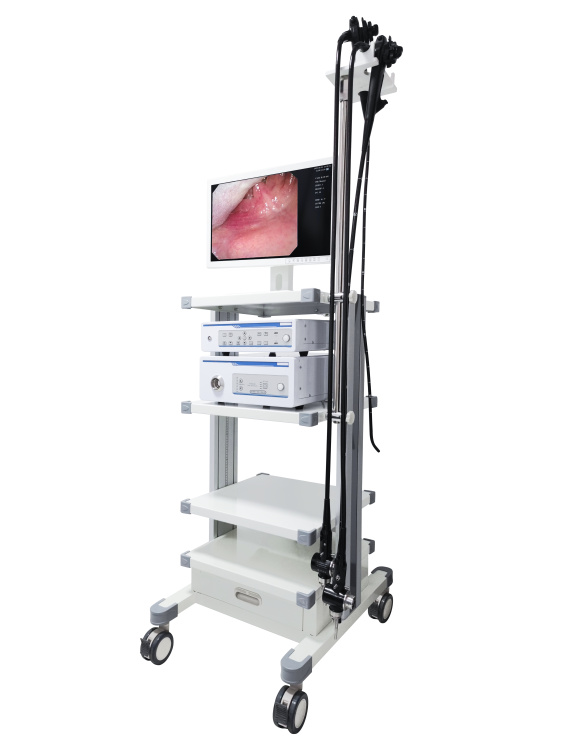

4.(Option 3:)Endoscopy trolley

Trolley

Size:500 * 700 *1350mm

Package size:



127*68*22cm (G.W.:36kgs)



TEAM & Factory

Office Building

Service Office

Product Training

Stock 1

Workshop

Test Room

Exhibition

Exhibition

Package

Ready To Ship

FAQ

Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.

Q: Can you do OEM/ private label?
A: Of course ,we can do OEM/private label for you with free charge

Q: What's your delivery time?
A: Generally it is 7-10 working days for 1 set,or according to order quantity.

Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more. Please suggest your preferred payment method.
