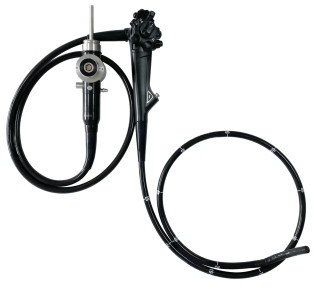

Diameter of distal- end |
Φ 9.8mm |
|
Diameter of insert tube |
Φ9.6 mm |
|
|
Clamp aperture |
Φ2.8mm+1.2mm（auxiliary water channel） |
|
|
Working length |
1050 mm |
|
|
Total length |
1350 mm |
|
|
View of field |
145 º |
|
|
Depth of view |
3-100mm |
|
|
Resolution |
CMOS1,000,000 Pixels high resolution |
|
|
Tip deflection |
Up210° down 90° L/R 100° |
|
|
Bending operation : |
Traction chain structure, whole sealed waterproof |
|
Image display : |
Two image display optional |
|
|
Split machine |
Main part and light source are splited |
|
|
Quality certification : |
ISO9001、13485 |
|
|
Warranty : |
One year(free), permanent repairs (not free) |
|
|
Package size : |
64*18*48cm (G.W.:6kgs) |
|
|

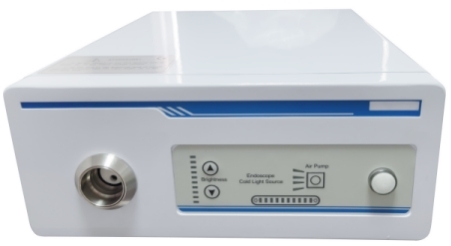

Lamp : |
LED light (80W white) |
|
Power: |
220-240V; 50-60HZ |
|
|
Color temperature : |
≥5300K ,140000lx illumination |
|
|
Brightness: |
0-10 level adjustable |
|
|
Video signal output: |
HDMI x2,DVI |
|
|
Air pump pressure : |
30-60Mpk, |
|
|
Air pump power : |
Strong/medium/weak 3 level adjustable |
|
|
Air flow : |
4-10 L/min |
|
|

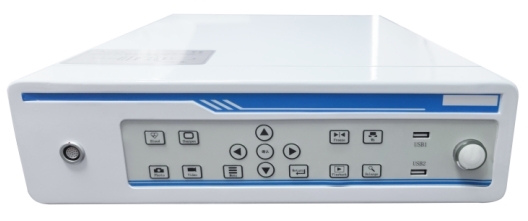

Sharpness adjustment : |
Supports automatic and manual modes, the manual mode supports 0-10 level adjustment |
|
|
*Withe balance : |
It supports 4 kinds of fixed white balance parameter selection, real-time dynamic white balance mode and manual white balance parameter setting mode, or one click white balance |
|
|
Gain function : |
It supports automatic and manual modes, and the manual mode supports 0-16 level gain adjustment and 0-30 level exposure time adjustment |
|
|
Vascular enhancement: |
Can increase vascular clarity |
|
|
Electronic amplification： |
Support 1.2/1.5/1.7/2.0 times 4-gear electronic amplification function |
|
|
Bad point correction: |
Support 0-6 level image bad point correction |
|
|
Package size : |
55*46*50cm (G.W.:20kgs) |
|
|
Main Function:
|
I*mage adjustment: supports 0-100 level brightness, contrast and saturation adjustment *Support full screen image freezing and half screen mode to freeze large images and dynamically display small images *With USB interface support picture and video record function and pictures playback function *Support connect same series Video bronchoscope ,laryngoscope ,Cystoscope ,Ureteroscope share this tower use |
|

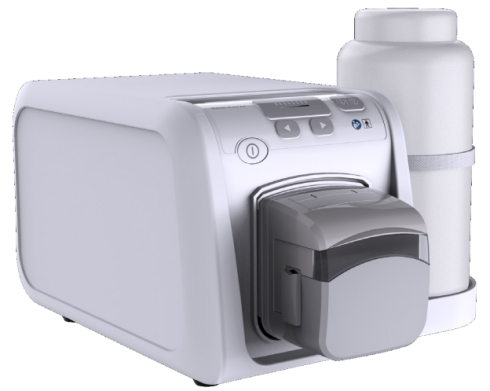

Input and output Maximum feeding pressure: |
<400 kPa |
|
|
Flow rate: |
0 - 1000 ml/min |
|
|
Operation noise |
≤60dB（A） |
|
|
Single output duration: |
<20s |
|
|
Dimensions: |
324 mm(W) * 160 mm(D) * 155 mm(H) ，6 Kg |
|
|

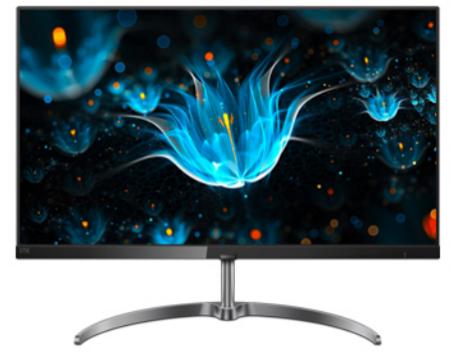

Display size |
24” |
|
Interface |
VGA/HDMI |
|
|
Resolution |
1920x1080 |
|
|
Display Ratio |
16:9 |
|
|
Color |
16.7M |
|
|
Max.Brightness |
250 cd/㎡ |
|
Trolley |
Size:500 * 700 *1350mm |
|
|
Package size: |
118.5*63.5*22cm (G.W.:28kgs) |
| Vessel capacity | 1 | |
| Maximum suction volume | 20 L / Min |
|
|

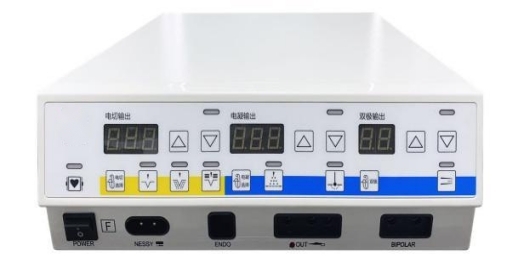

Power supply： |
110/220V～ 50/60HZ |
|
Power capacity： |
1100VA |
|
|
Classify： |
Class I Type BF |
|
|
Working mode: |
Intermittent loading, working continuously |
|
|
Fuse |
BGXP5×20 5A 3pcs |
|
|
Highest frequency： |
400W 500Ω |
|
|
Packing: |
Handle with care, upward, keep dry etc. |
|
Item NO. |
Picture |
Description |
Details |
QTY （pc） |
|
1 |
Thermal biopsy forceps | 2.3X 2100mm |
1 |
|
|
2 |
electric snare | 2.3X 2100mm |
1 |
|
|
3 |
injection needle | 1.8X2100mm |
1 |
