Product Description
Parameter of video endoscope---VET-8800 gastroscope
|
Item
|
VET-8800
|
|
Top diameter
|
≤Φ8.0mm
|
|
Input tube
|
≤Φ8.0mm
|
|
Biopsy channel
|
≥Φ2.2mm
|
|
Working length
|
≥1500mm
|
|
Total length
|
≥1800mm
|
|
Field of view
|
≥140º
|
|
Depth of field
|
≥3-100mm
|
|
Image resolution
|
≥1000000pixels CMOS
|
|
Bending angles
|
≥ up210º down≥90º left&right≥100º
|
|
warranty
|
One year
|
|
Package size
|
65 X 50 X 18cm 6KGS
|

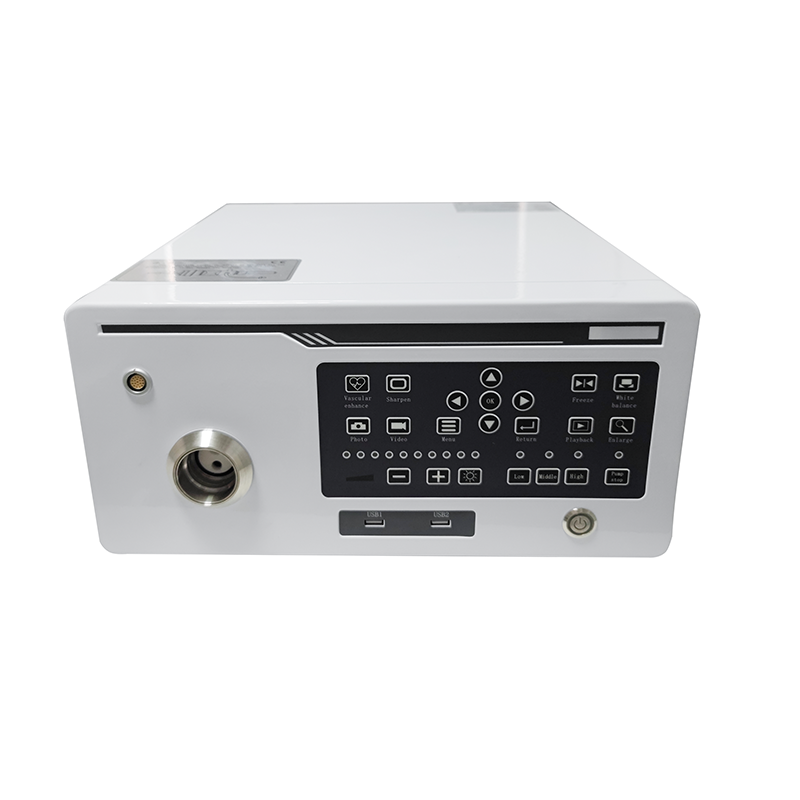

Parameter of processer& light source machine（LED light）---EMV-9000
|
Lamp |
LED light (80W white) |
| Power |
Wide voltage：110-240V; 50-60HZ |
| Color temperature |
≥5300K ,140000lx illumination |
| Brightness |
0-10 level adjustable |
| Video signal output |
HDMI ,DVI |
| Air pump pressure |
30-60Mpk, |
| Air pump power |
Strong/medium/weak 3 level adjustable |
|
Air flow
|
4-10 L/min |
|
Sharpness adjustment
|
Supports automatic and manual modes, the manual mode supports 0-10 level adjustment |
|
*Withe balance
|
It supports 4 kinds of fixed white balance parameter selection, real-time dynamic white balance mode and manual white balance parameter setting mode, or one click white balance |
|
*Gain function
|
It supports automatic and manual modes, and the manual mode supports 0-16 level gain adjustment and 0-30 level exposure time adjustment |
| *Vascular enhancement |
Can increase vascular clarity |
| *Electronic amplification |
Support 1.2/1.5/1.7/2.0 times 4-gear electronic amplification function |
| *Bad point correction |
Support 0-6 level image bad point correction |
| Package size |
55*30*50cm (G.W.:13kgs) |
|
Main Function
|
*mage adjustment: supports 0-100 level brightness, contrast and saturation adjustment*Support full screen image freezing and half screen mode to freeze large images and dynamically display small images*With USB interface support picture and video record function and pictures playback function*Support connect same series Video Gastroscope, Colonoscope, bronchoscope , laryngoscope , Cystoscope , Ureteroscope share this tower use |
| Package size |
55 X 50 X 30cm 13KGS |
Parameter of suction device
|
Vessel capacity |
2 |
| Maximum suction volume |
20 L / Min |
| Package size |
45*40*56cm 13KGS |
HD LCD monitor ---24”
|
Monitor
|
Phillips 24”HD LCD monitor
Resolution :1920X 1080
|
|
Package size
|
65 X 50 X 18cm 6KGS
|
Endoscopy trolley and HD LCD monitor
|
Trolley
|
Size:760 *570*1200mm with drawer
|
|
Package size
|
124*68*25 cm 36KGS
|
TEAM & Factory
Office Building
Service Office
Product Training
Stock 1
Workshop
Test Room
Exhibition
Exhibition
Package
Ready To Ship
FAQ
Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.
Q: Can you do OEM/ private label?
A: Of course ,we can do OEM/private label for you with free charge
Q: What's your delivery time?
A: Generally it is 7-10 working days for 1 set,or according to order quantity.
Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.
Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more. Please suggest your preferred payment method.
