Product Description
1.parameter of video endoscope---VET-6000P Portable USB vet endoscope
|
Diameter of distal- end
|
Φ8.0 mm
|
|
Diameter of insert tube
|
Φ8.0mm
|
|
Clamp aperture
|
Φ2.2mm
|
|
Working length
|
1500mm
|
|
Total length
|
1800mm
|
|
View of field
|
140º
|
|
Depth of view
|
3-100mm
|
|
Resolution
|
CMOS 1,000,000 pixels
|
|
Tip deflection
|
Up180° down 90° L/R 100°
|

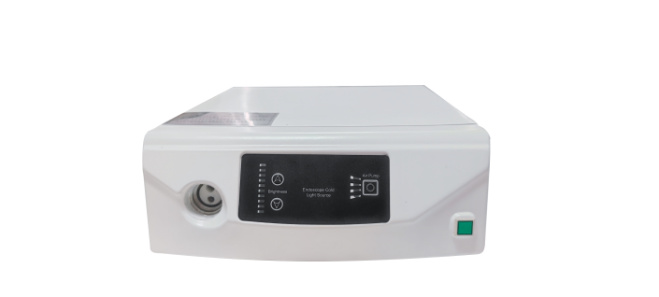

2.（Option 1:） parameter of processer& light source machine（LED light）---VET-6000P Portable USB vet endoscope
| |
Voltage :
|
220V-240V
|
|
Frequency:
|
50-60HZ
|
|
lamp Power:
|
15V-150W environmentally friendly halogen tungsten lamp
|
|
Illumination
|
70000LX (using special measuring tools)
|
|
Color Temperature:
|
3000~7000K
|
|
Air Pump Pressure:
|
30-60Mpk,
|
|
|
Air Flow:
|
4/L/min-10L/min (Quiet pump)
|
3.（Option 2：）Touch screen laptop---10”
| |
Power
|
110-220V ,50HZ
|
|
Single out put support
|
VGA ,HDMI
|
|
System
|
Windows 10
|
|
Screen Size
|
10.1 Inches with touch screen
|
|
Camera APP
|
Yes,provide and free
|
|
Lamp
|
LED
|
4.（Option 3:）Endoscopy trolley
| |
Trolley
|
Size:500 * 700 *1350mm
|
|
Package size:
|
127 *68*22cm (G.W.:36kgs)
|
5.（Option 4:）Laptop computer
| |
Laptop computer
|
HUAWEI MateBook D 14 SE
|

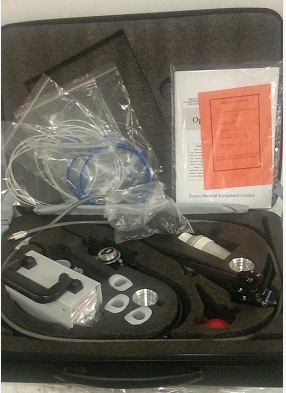

6.Flexible endoscope package list
|
●
|
Portable scope
|
set
|
1
|
|
|
●
|
Leak detector
|
set
|
1
|
|
●
|
Biopsy forceps
|
pc
|
6
|
|
●
|
Cleaning brush
|
pc
|
1
|
|
●
|
Attract valve anti jet cover
|
Set
|
2
|
|
●
|
Endoscope case
|
set
|
1
|
|
●
|
Water bottle
|
set
|
1
|
|
●
|
USB line
|
set
|
1
|
|
●
|
Portable pump
|
set
|
1
|
|
●
|
Certificate
|
pc
|
1
|
|
●
|
User manual
|
pc
|
1
|
TEAM & Factory
Office Building
Service Office
Product Training
Stock 1
Workshop
Test Room
Exhibition
Exhibition
Package
Ready To Ship
FAQ
Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.
Q: Can you do OEM/ private label?
A: Of course ,we can do OEM/private label for you with free charge
Q: What's your delivery time?
A: Generally it is 7-10 working days for 1 set,or according to order quantity.
Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.
Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more. Please suggest your preferred payment method.
