Item |
GBS-3 Ureteroscope |
GBS-3* |
|
Diameter of distal- end |
Φ3.0mm |
Φ2.8mm |
|
|
Diameter of insert tube |
Φ 2.8mm |
Φ 2.8mm |
|
|
Biopsy channel |
1.0mm |
N/A, no biopsy channel |
|
|
Working length |
600mm |
600mm |
|
|
Total length |
860 mm |
860 mm |
|
|
View of field |
120º |
120º |
|
|
Depth of view |
3-50mm |
3-50mm |
|
|
Tip deflection |
up 270° down 180° |
up 270° down 180° |
|
|
Package size |
64*18*48cm (G.W.:5.18kgs) |
64*18*48cm (G.W.:5.18kgs) |
|
|
Remark |
We can provide OEM service, technical details can be customized. |
||
|
Video Bronchoscope |
|||

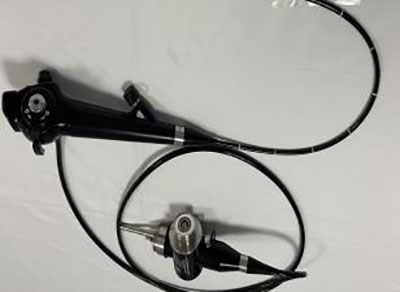

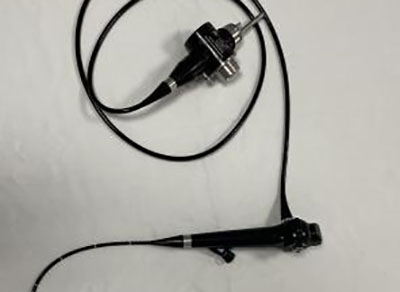

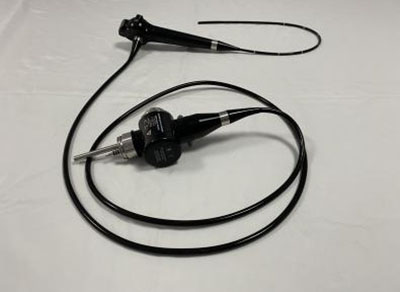

Part 1：GBS-3 video Ureteroscope
Bending operation : Traction chain structure, whole sealed waterproof
Image display : Two image display optional
Integrated 2 in1 machine : Main part and light source are 2 in 1
Quality certification : ISO 13485
Warranty : One year(free), permanent repairs (not free)
Package size :64*18*48cm (G.W.:5.18kgs)
|
|

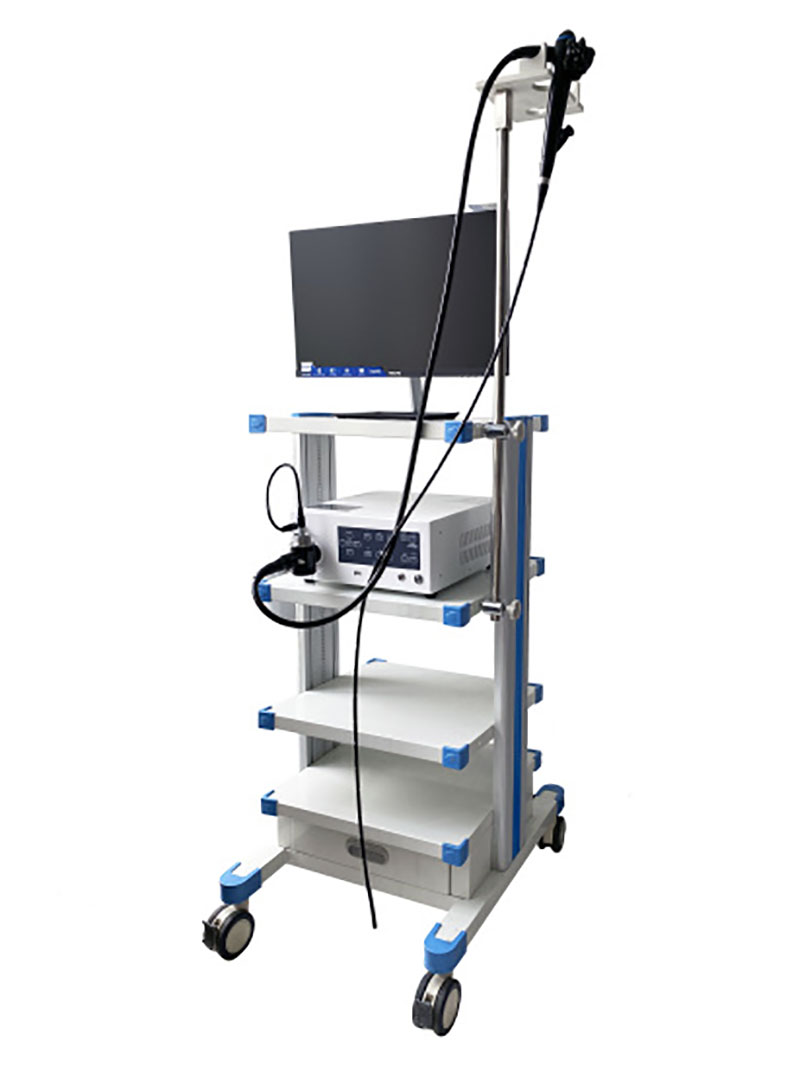

Size |
500 * 700 *1350mm |
|
|
Package size |
127*64*22cm (G.W.:36.0kgs) |
Endoscope is a kind of medical instrument, which is usually used to examine and treat internal organs of human body. It is widely used in medical fields such as internal medicine, surgery, gynecology and obstetrics, especially in the diagnosis and treatment of digestive tract diseases.
However, our company's development direction is more focused on the field of animal medicine. In China, due to the increase in the number of pets and the rapid development of the breeding industry, animal medicine has become a rapidly growing market. Therefore, our endoscope products are gradually developing in this direction.
Our products include gastroscope, enteroscope, tracheoscope, bronchoscope, cystoscope and skin breakthrough device. These products can be used not only to diagnose and treat digestive and respiratory diseases of animals, but also to diagnose and treat diseases such as tumors and infections.
